The processor

Stereo in.
Immersive out.

The Audiolift Immersive Processor is a 2U half-rack unit on Dante. It analyses the spatial information within a stereo mix and redistributes it across the loudspeaker system, in real time.

Request a demo Documentation ↗
Hardware Signal flow Controller Redundancy Documentation ↗
Principle

Your stereo pan becomes a position in the room.

A stereo mix already contains its sources and their placement. The processor extracts them and renders each one on the loudspeakers that match its position, so the image spreads across the whole venue instead of collapsing to two points.

For the engineer, nothing changes: mix in stereo, pan as usual. For the audience, every seat gets a coherent, enveloping image.

Hardware

Half-rack, 2U, built for the road and the rack.

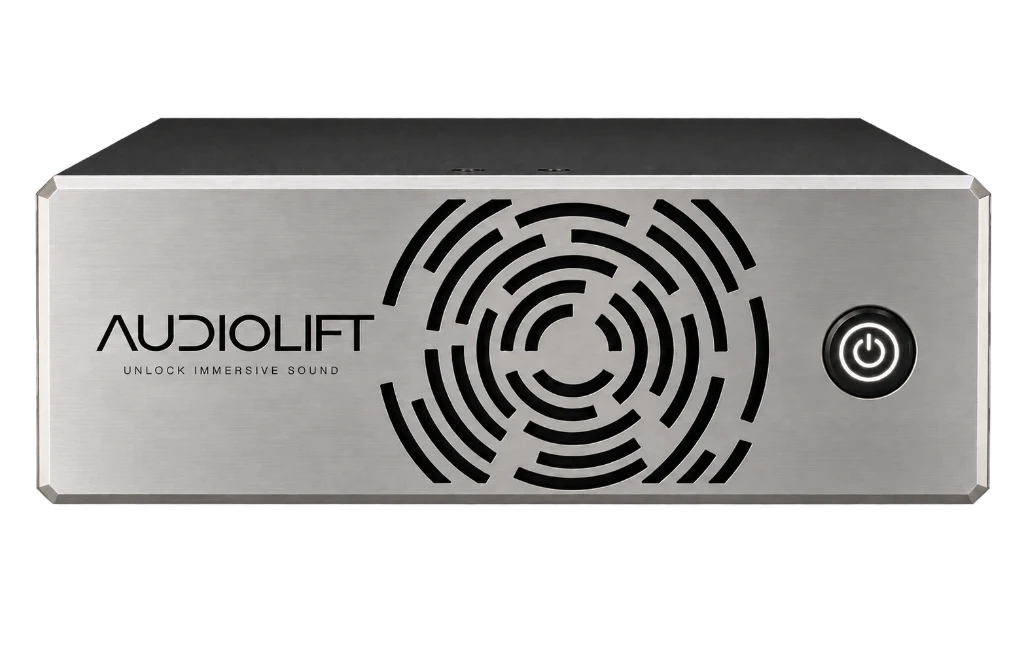

Audiolift Immersive Processor, front panel: brushed aluminium with arc-field grille and power button

Front panel

  1. Brushed anodised aluminium, Audiolift logotype and arc-field ventilation grille
  2. Power button with status LED
  3. Front-to-rear forced-air cooling, removable dust filter

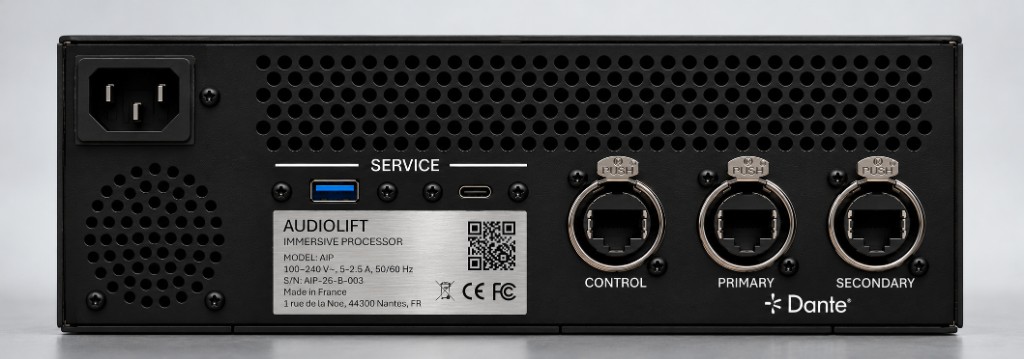

Audiolift Immersive Processor, rear panel: IEC mains inlet, USB and USB-C service ports, CONTROL, Dante Primary and Dante Secondary etherCON ports

Rear panel

  1. 3 × etherCON: Dante Primary, Dante Secondary, CONTROL
  2. USB2 and USB-C (service & extensions)
  3. IEC C14 mains inlet, 100–240 V~
  4. Rating label with QR code to the documentation
Signal flow

Inserted between the mix and the amplifiers.

Signal flow: a mixing console, a DJ setup and a streaming source each send stereo over Dante to the Audiolift Immersive Processor, which feeds up to 32 channels over Dante to amplifiers and loudspeakers, or directly to Dante loudspeakers.Mixing consoleStereo (L / R)DJ setupStreaming · playbackAudiolift Immersive ProcessorStereo in · up to 32 outputsSoundstage is analysedAudiolift · same image, every loudspeakerDante · 32 chDante amplifiersLoudspeakersDante loudspeakers
CONTROL NETWORK · etherCON CONTROL
Audiolift Controller (Windows) · Web UI (any browser, tablets) · OSC · MIDI Learn · Bitfocus Companion · Stream Deck+
REMOTE ACCESS
Audiolift Connect, included — cloud control, over-the-air (OTA) firmware updates and remote support.
Audiolift Controller

Clear enough for a first-time operator.

Draw the venue, place the loudspeakers, check the simulation, store the show. Each page of the Controller does one job.

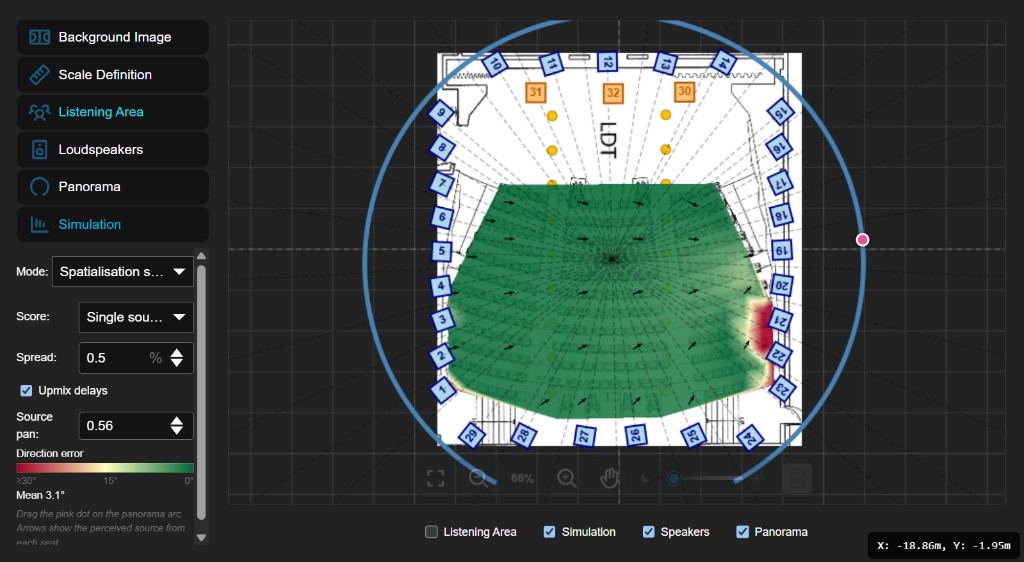

Spatialisation simulation over a theatre plan with 32 loudspeakers
Design & simulationPlan, scale, listening area, loudspeaker layout. Direction error is mapped across every seat.

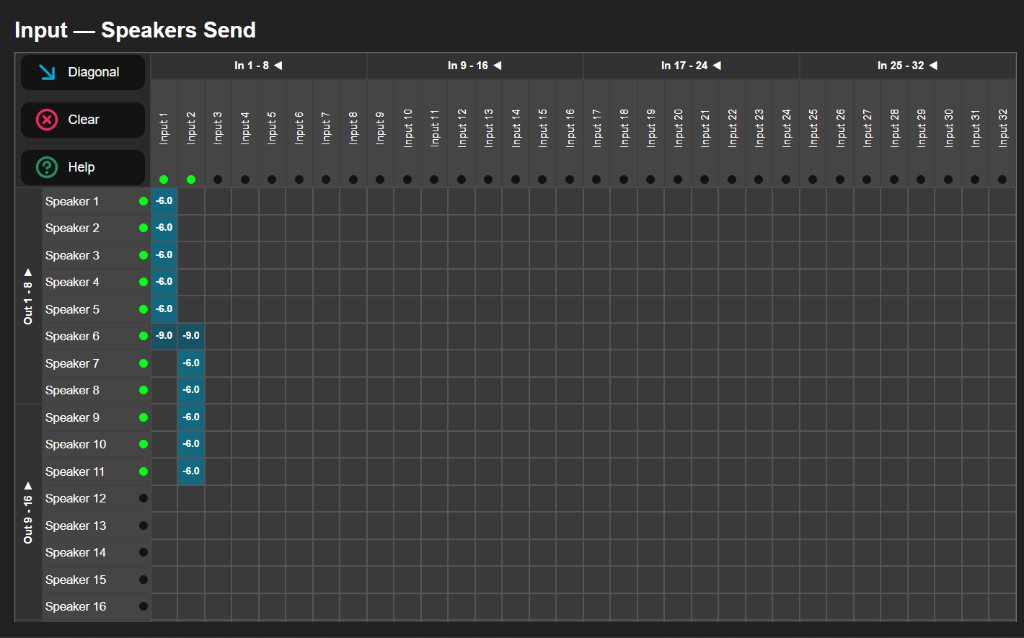

Input routing matrix
RoutingUpmix send, speaker send and direct-out matrices, with gain on every crosspoint.

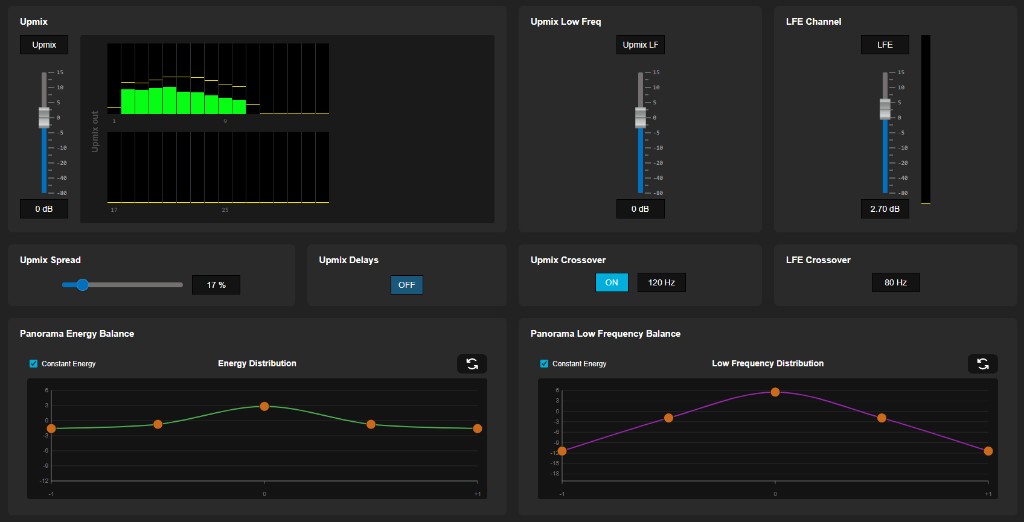

Upmix page
UpmixUpmix, LF and LFE levels, spread, delays and crossovers.

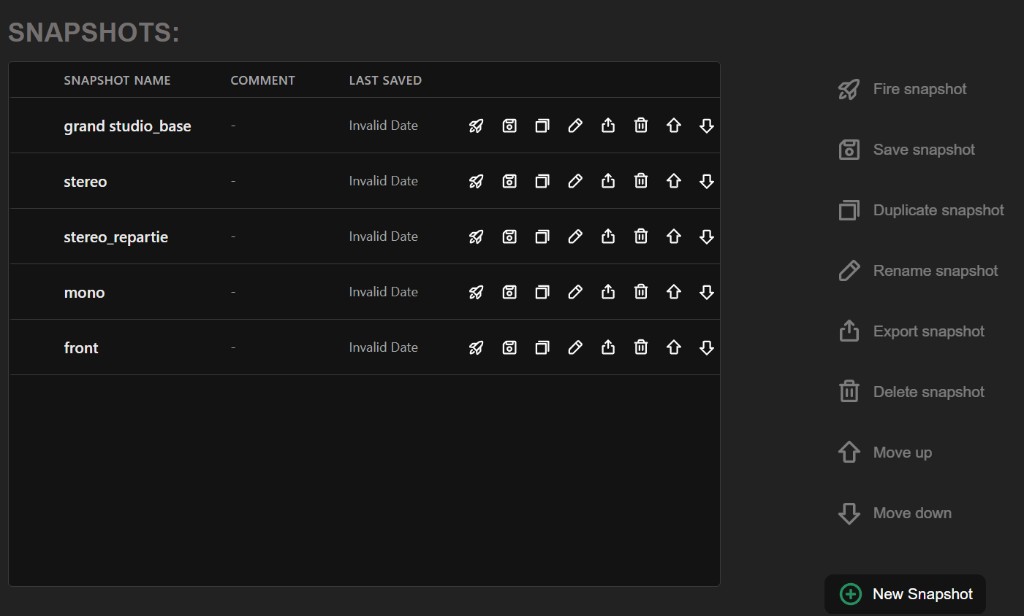

Snapshots page
SnapshotsRecallable from the UI, MIDI or OSC.
Redundancy

Designed for the show that cannot stop.

Redundant Dante network

Dedicated Primary and Secondary ports, separate from the control network.

Dual-engine ready

Two processors mounted side by side in 2U. Full redundancy requires two units and an external switchover device.

Cloud control & OTA updates

Control the processor over the cloud, receive firmware updates over the air with automatic rollback, and get remote support from our team. Password-protected access.

Specifications

Everything an integrator needs.

Datasheet, hardware manual and Controller guide, in English and French.

Open the documentation
Audio network
Dante, Primary + Secondary
Channels
32 in / 32 out
Latency
4.7 ms
Redundancy
Dual network · dual-engine ready
Control
Web UI · Windows app · OSC · MIDI
Cloud
Remote control · OTA updates · remote support
Format
½ 19″ · 2U · 6 kg
Compliance
CE
